Rated speed（v=0.5m/s）				angle of inclination（α=35°）
Model	Rise(mm)	Net Weight (kg)	Supporting load		motor power (kw)	Shipping Dimensions
			R1(KN)	R2(KN)		l	h
HDB30-60(4500p/h)	3000	5400	43	39	5.5	10180	2850
	3500	5700	46	41	5.5	11030	2890
	4000	6000	49	44	5.5	11890	2920
	4500	6400	52	46	5.5	12750	2940
	5000	6700	54	49	5.5	13610	2970
	5500	7000	57	51	5.5	14470	2980
	6000	7300	60	54	8	15530	3000
HDB30-80(6750p/h)	3000	5600	49	44	5.5	10180	2850
	3500	6000	52	47	5.5	11030	2890
	4000	6300	56	50	5.5	11890	2920
	4500	6600	59	53	5.5	12750	2940
	5000	7000	62	56	8	13610	2970
	5500	7300	65	59	8	14470	2980
	6000	7500	69	61	11	15530	3000
HDB30-100(9000p/h)	3000	6000	56	50	5.5	10180	2850
	3500	6400	60	53	5.5	11030	2890
	4000	6700	64	57	8	11890	2920
	4500	7100	67	60	8	12750	2940
	5000	7400	71	64	8	13610	2970
	5500	8200	77	69	11	14470	2980
	6000	8500	81	72	11	15530	3000

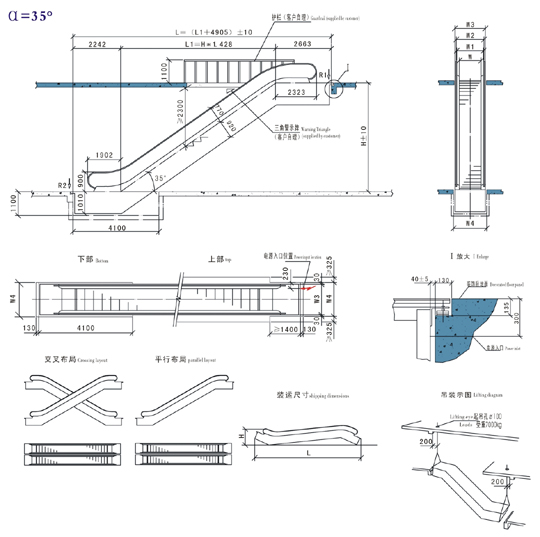

Basic Dimensions \Model	HDB30-60	HDB30-80	HDB30-100
W：Step width	600	800	1000
W1：Inter width of interior paneling	830	1030	1228
W2：Central distance of handrail	838	1038	1238
W3：Exterior width of the escalator	1200	1400	1600
W4：Min.width of pit	1260	1460	1660
L：Maximum	18500	16900	15700
